HOME PRODUCTS Thermal Interface Materials Thermal Paste TG-N909 Non-Silicone Thermal Paste Back

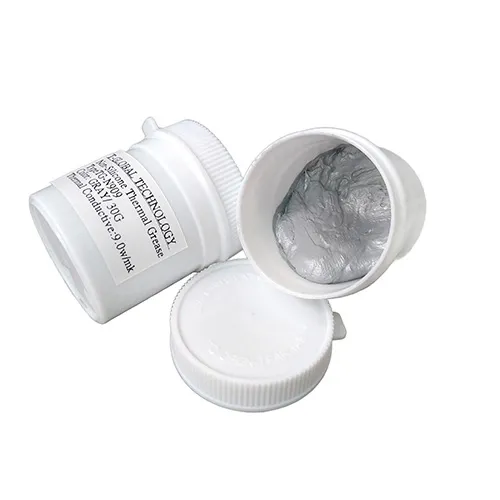

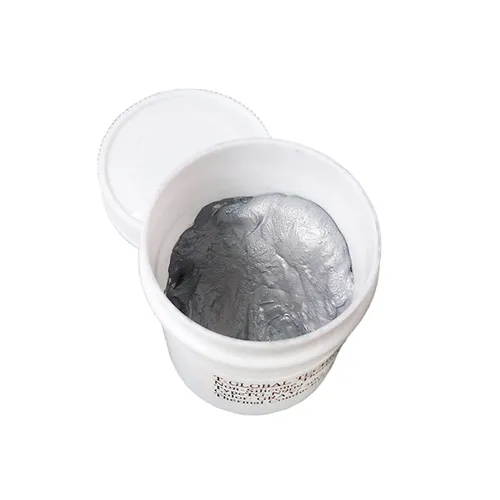

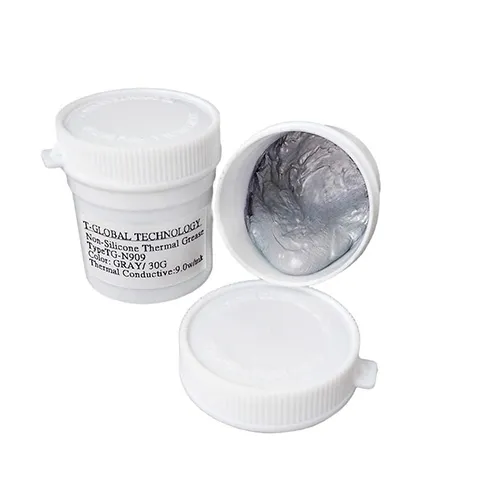

TG-N909 Non-Silicone Thermal Paste

  • High thermal conductivity
  • Silicone oil free
  • No overflow
  • Low thermal impedance/thermal resistance
  • Non-silicone base, no Environmental pollution

TG-N909 is a non-silicon thermal conductive paste launched by T-Global in 2019. It is with 9W/m•K thermal conductivity also it’s high-performance thermal conductive material without siloxane. There will be no evaporation of silicone resin and no precipitation of silicone oil. The low thermal resistance of non-silicon thermal paste can absorb high-wattage chip heat, thereby improving the efficiency and service life of heating electronic components.

Share:

It is suitable for optical instruments and silicon-sensitive equipment, such as CPU, chip cooler, LED electrical appliances. Compared with common silicon-type thermal paste, it is like a whole new world, allowing you to use it without silicon oil volatilization. The worries of the future, as long as the general thermal paste can be used, will not worry too much. It will show its excellent thermal conductivity. Any heating element and the radiator can let it grow.



Application:

Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.

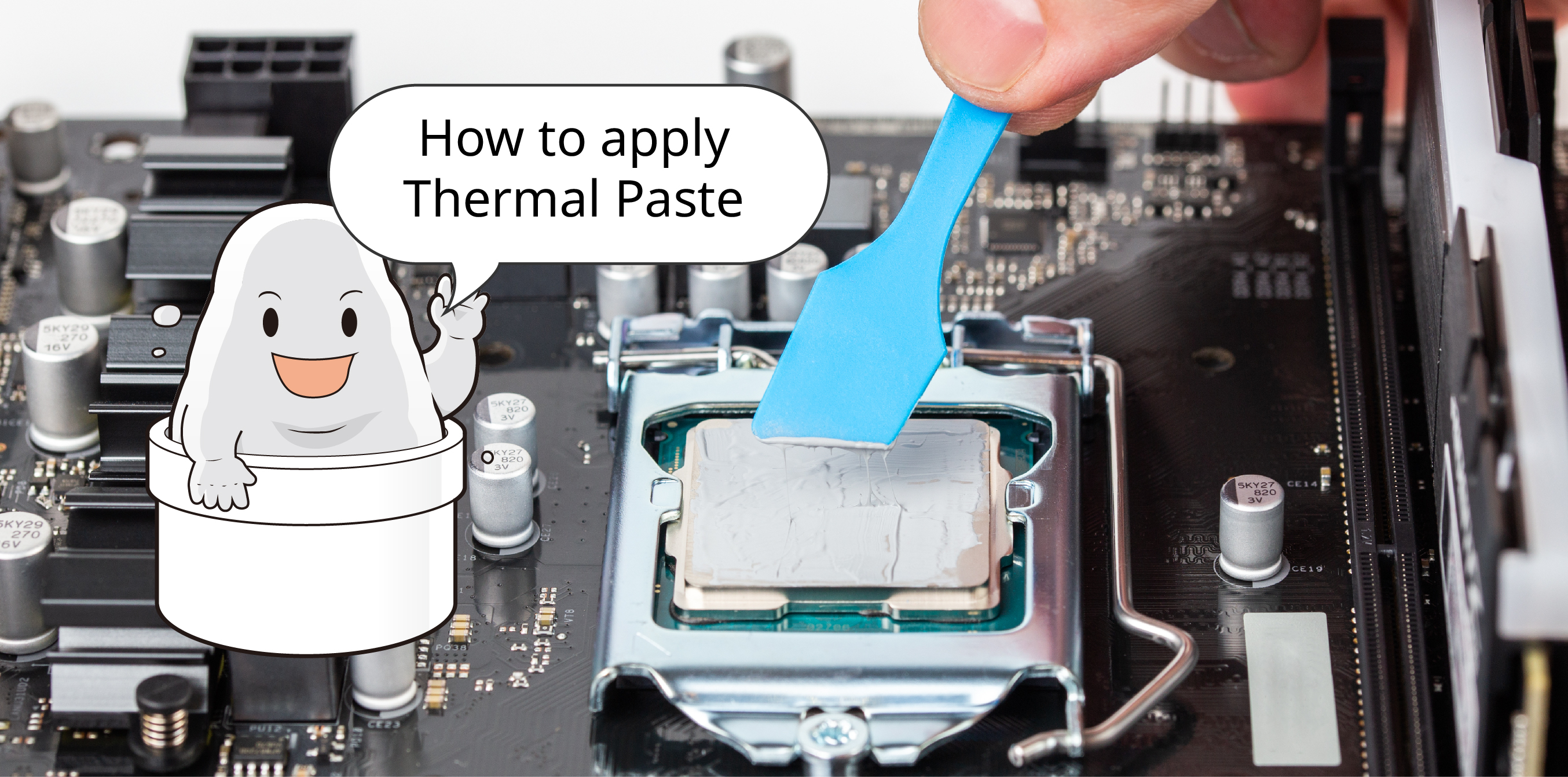

How to use thermal paste

Find a high-purity solvent and cloth. Wipe the surface of the CPU and the entire heat sink assembly. Use the center-point application method. Spread the thermal paste evenly. Put the cover back on the heat sink.

Find a high-purity solvent and cloth.

Wipe the surface of the CPU and the entire heat sink assembly.

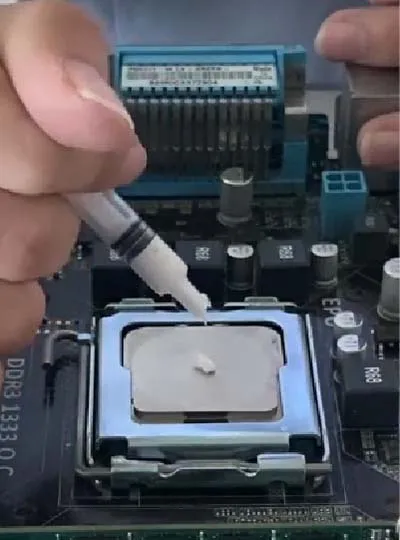

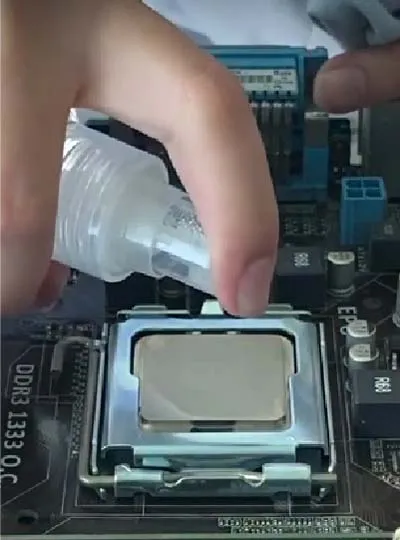

Use the center-point application method.

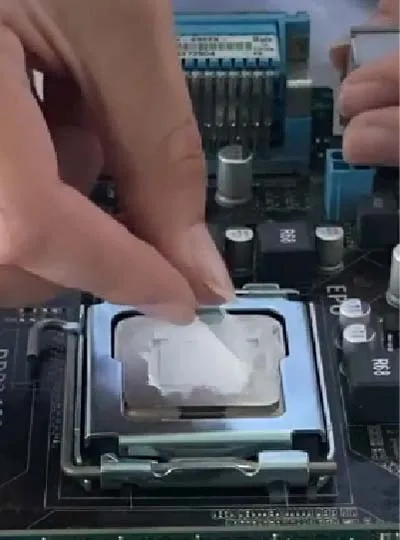

Spread the thermal paste evenly.

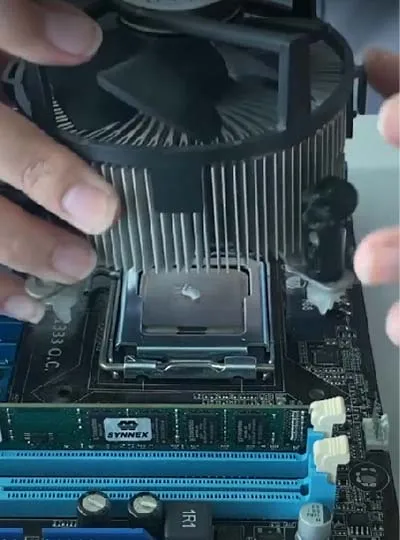

Put the cover back on the heat sink.



Properties
Unit
TG-N909 Non-Silicone Thermal Paste
Testing methods
Thermal Conductivity
W/m•K
9±10%
ASTM D5470 Modified
Color
Gray
Oil Dispersible
wt%
<0.1
24hrs @150°C
Weight Loss
wt%
<0.1
ASTM E595 Modified
Viscosity
Pa•s
300±100
Brookfield
Density
g/cm³
2.85±5%
ASTM D792
Operating Temperature
°C
-40~+200
Volume Resistivity
Ohm-m
>10¹³
ASTM D257
Standard Package
Pot
