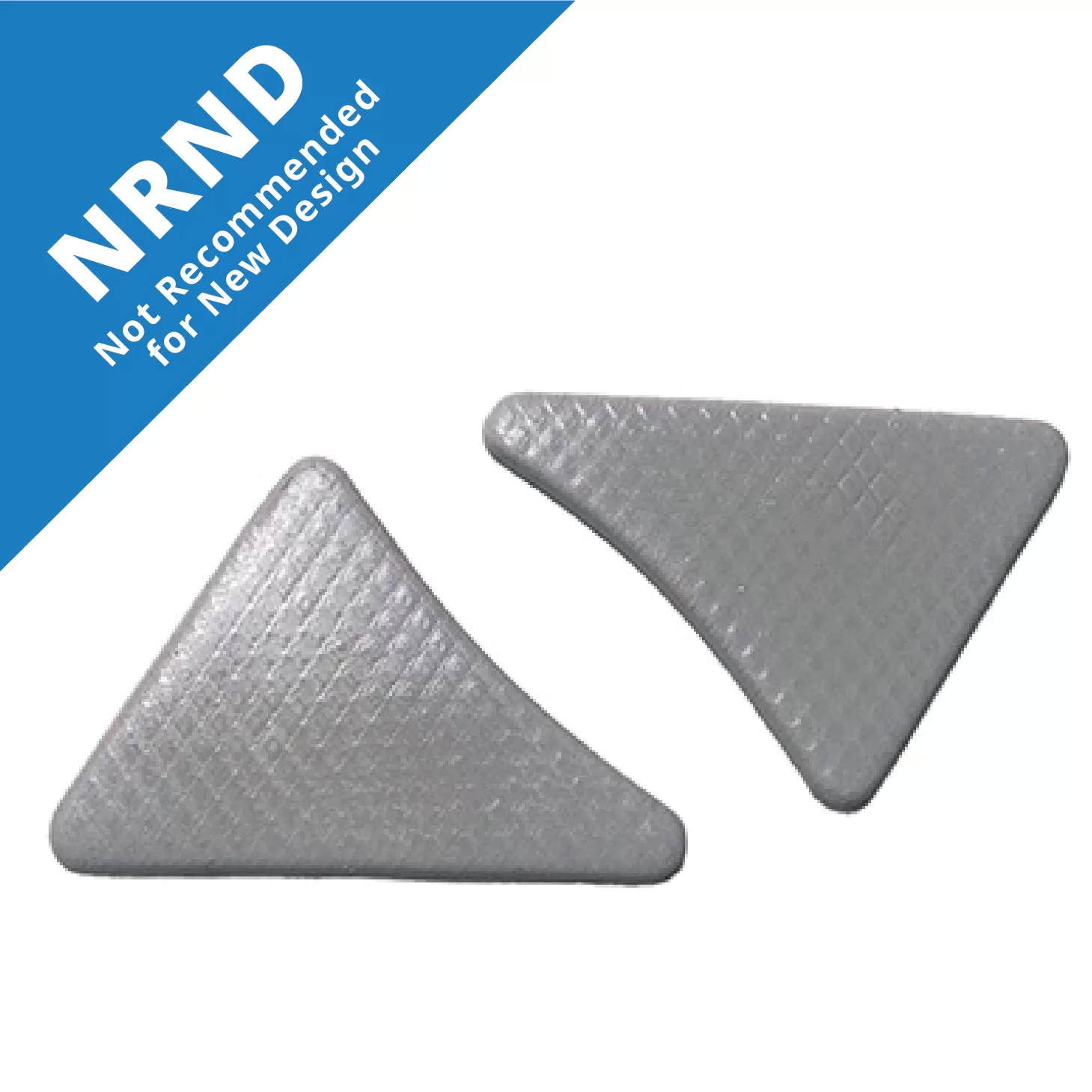

TG-A126X / TGX Ultra Soft Thermal Pad

  • High-end product with thermal conductivity of 12.6 W/m•K
  • High compressibility
  • Low hardness (Shore OO 55)
  • Electrical insulation

By using a special process, we use the silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Share:

This  is the old series thermal pads, please contact our product consultant if you got any inquiry.

The new  TG-A series thermal pad has better performance on the thermal conductivity,  compressibility, with the ultra-soft softness, low thermal resistance and naturally tacky’s characteristics. It is often used as an interface material for IC and electronic heat dissipation, and is equipped with a heat pipe, vapor chamber and cooling modules.



Recommended ultra soft thermal pad Series

TG-A1250 Ultra Soft Thermal Pad
TG-A1250 Ultra Soft Thermal Pad
Thermal Conductivity:12.5W/m•K ±10%
Hardness:Shore OO 55 ±10
Dielectric Breakdown Voltage:≥ 10 KV/mm







Properties
Unit
TG-A126X / TGX Ultra Soft Thermal Pad
Testing methods
Thermal Conductivity
W/m•K
12.6±10%
ASTM D5470 Modified
Thickness
mm
0.5~2.0
ASTM D374
Color
Gray
Colorimeter CIE 1976
Flame Rating
V-0
UL 94
Dielectric Breakdown Voltage
KV/mm
≥12.2
ASTM D149
Reinforcement Carrier
-
Weight Loss
%
<1
ASTM E595 Modified
Density
g/cm³
3.4±5%
ASTM D792
Operating Temperature
°C
-45~+200
Volume Resistivity
Ohm-m
>10¹⁰
ASTM D257
Elongation
%
-
ASTM D412
Standard Format
Sheet
Hardness(Silicone Side)
Shore
OO 55±10
ASTM D2240
