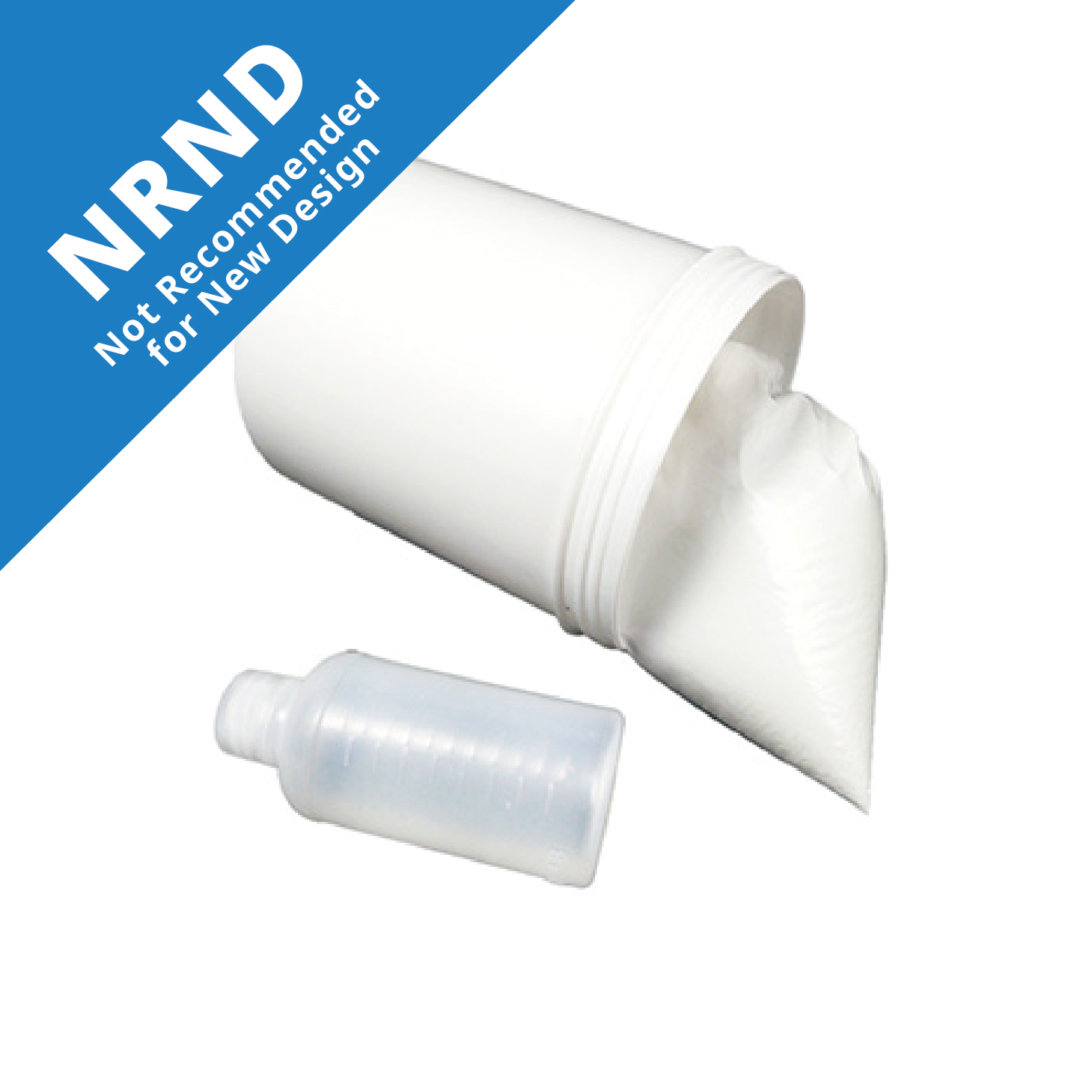

TG-A720AB / S720AB Potting Compound
- Good thermal conductivity
- Room temperature curing
- High stability
- Water proof
TG-A720AB / S720AB is a thermal potting compound with 0.8W/m•K thermal conductivity. It uses silicon as the base material and contains thermally conductive powder, so it can be insulated, waterproof, and has the effect of heat conduction, which can protect sensitive electronic components stably for a long time. , To reduce the external influence on electronic components. This potting compound after mixing A glue and B glue this can be healed in 18 hours as long as it is placed in an environment of 25 degrees, which is very convenient to operate.
Electric vehicles are one of the hot topics in recent years, and the biggest core supporting electric vehicles is car battery modules. Although the appearance of the battery module is one large, the inside is usually composed of one battery. , And the car is in the wind and sun outside, and the temperature is uncertain. At this time, the thermal conductive sealant plays a very important role. It can directly and effectively fill the empty system in the module to protect each small battery and reduce the external influence. At the same time, it can also achieve the effect of heat conduction.
Application：
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
Properties
Unit
TG-A720AB / S720AB Potting Compound
Testing methods
Thermal Conductivity
W/m•K
0.8±10%
ASTM D5470 Modified
Color
White
–
Dielectric Breakdown Voltage
KV/mm
≥12
ASTM D149
Volume Resistivity
Ohm-m
-
ASTM D257
Weight Loss
%
<1
ASTM E595 Modified
Density
g/cm³
1.97±5%
ASTM D792
Operating Temperature
°C
-40~+180
–
Viscosity
Pa·s
2~10
Brookfield
Curing Time @25°C
18
–
Curing Time @60°C
-
–
Curing Time @80°C
-
–
Curing Time @100°C
-
–
Hardness
Shore
A 50±10
ASTM D2240
Mixing Ratio
gram
100:2
–
Standard Package
Pot
–
