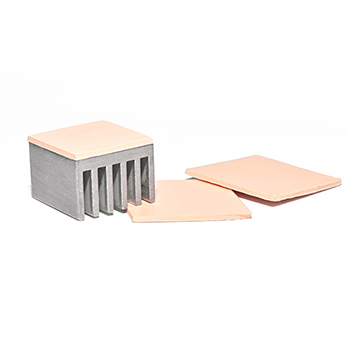

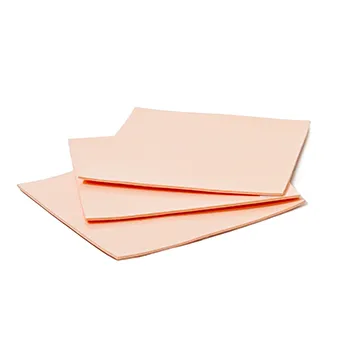

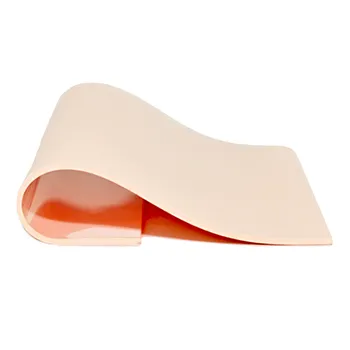

TG-A1800L Low Bleed Thermal Pad

  • Low bleed
  • High compressibility
  • Self-adhesive

By utilizing a special blend of materials, this product can effectively control the spread of silicon oil in the event of overflow.

Share:

The TG-A1800L is a low bleed thermal heat pad that can effectively control silicon oil overflow, increasing the stability and durability of electronics products.



Application:

Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.

How to use thermal pad

Tearing off the release paper

Tearing off the release paper.

Attach the thermal pad to the heat source

Attach the thermal pad to the heat source.

Remove the protective film

Remove the protective film.

Apply components onto the exposed part

Apply components onto the exposed part.

Thermal Conductivity

Thermal Conductivity

Thermal conductivity refers to the ability of a given material to conduct/transfer heat.
Dielectric Breakdown Voltage

Dielectric Breakdown Voltage

Dielectric breakdown is the failure of an insulating material to prevent the flow of current under an applied electrical stress.
Hardness

Hardness

Higher numbers on the scale indicate a greater resistance to indentation and thus harder materials.



Properties
Unit
TG-A1800L Low Bleed Thermal Pad
Testing methods
Thermal Conductivity
W/m•K
1.8±10%
ASTM D5470 Modified
Thickness
mm
0.5~8.0
ASTM D374
Color
Pink
Colorimeter CIE 1976
Flame Rating
V-0
UL 94
Dielectric Breakdown Voltage
KV/mm
≥7
ASTM D149
Weight Loss
%
<1
ASTM E595 Modified
Density
g/cm³
2.6±5%
ASTM D792
Operating Temperature
°C
-50~+150
Volume Resistivity
Ohm-m
10¹³±10%
ASTM D257
Bleeding Width
mm
<3
T-Global Test Method
Elongation
%
140
ASTM D412
Standard Format
Shore
Hardness(Silicone Side)
Shore OO
35|±10
ASTM D2240
