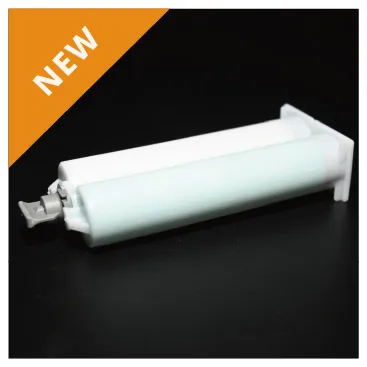

TG-ASD50AB Thermally Conductive Gel
- Good thermal conductivity
- Pistol friendly & easy assembly
- A:B=1:1
- Cured by room temperature or heating
Thermally Conductive Gel has a shelf-life of 12 months from the date of manufacture, as indicated by the lot number, when stored in the original, should be unopened container at or below 25°C.
Applications：
Electronic Components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy, Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
Operation Manual：
Pot
-

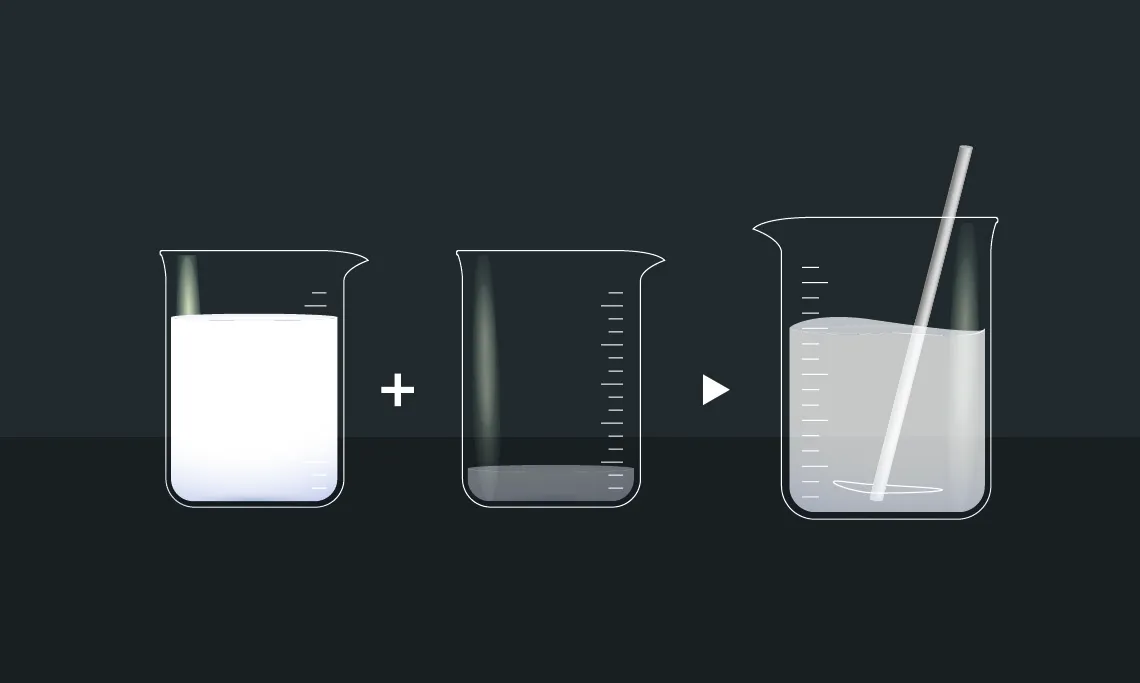

①Mix component A and B.
-

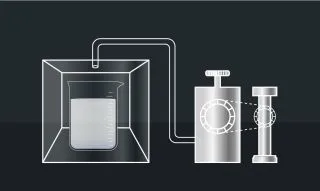

② Vacuum out air.
-
③ Pour potting compound.

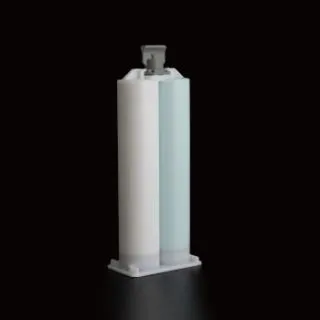

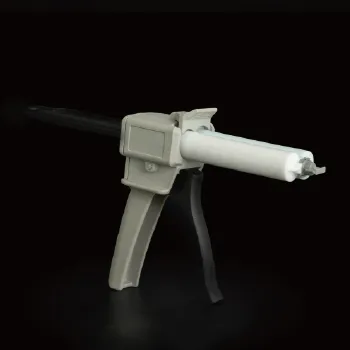

Tube
-

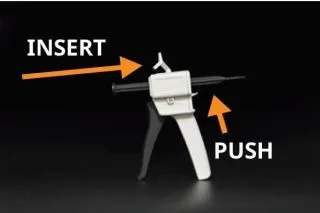

① Push the latch and insert the stick.
-

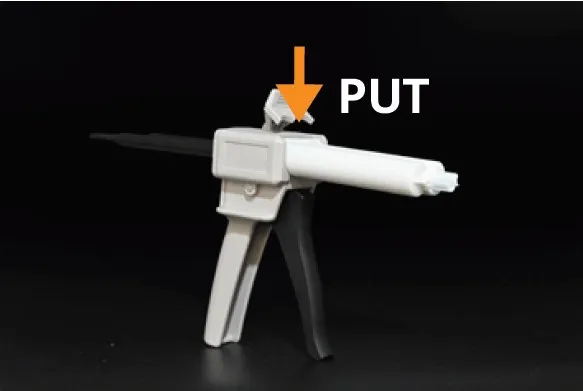

② Put the tube in.
-

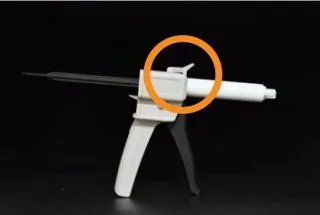

③ Close the cover.
Properties
Unit
TG-ASD50AB Thermally Conductive Gel
Test Method
Thermal Conductivity
W/m·K
5.0±0.5
ISO 22007-2
Color
-
A:Green / B:White
-
Dielectric Breakdown Voltage
kV/mm
5±3
ASTM D149
Volume Resistivity
Ohm·m
10⁹
ASTM D257
Density
g/cm³
3.05±0.15
ASTM D792
Operating Temperature
° C
-50~+150
-
Weight Loss
%
<1
By T-Global
Viscosity @1.0rpm
Pa·s
A:250 / B:250±100
ASTM D7395 / ASTM D4287
Elongation
%
>100
ASTM D412
Tensile Strength @T3.0mm
kgf/cm²
3
ASTM D412
Curing Time @25°C
hr
120~240
-
Curing Time @50° C
hr
40~60
-
Curing Time @80°C
hr
20~40
-
Standard Package
-
Pot / Tube
-
Mixing Ratio
-
1:1
-
Hardness
Shore OO
40±10
ASTM D2240
