Understanding How Thermoelectric Cooling Works: Principles and Applications

What is Thermoelectric Cooling?

Thermoelectric cooling operates based on the Peltier effect, where an electric current drives heat transfer between two materials with differing electron densities. It applies a DC voltage for a temperature gradient. Heat is absorbed on one side and released on the other. Reversing the current changes the heat flow direction for dual functionality for cooling or heating.

The process is fundamental to "how does thermoelectric cooling work." Remember, it utilizes n- and p-type semiconductor thermoelectric modules. They are thermally parallel and electrically in series. Nevertheless, efficiency requires low thermal conductivity and high electrical conductivity to balance heat resistance and electrical performance.

How Does Thermoelectric Cooling Work?

The Peltier Effect

The Peltier effect powers thermoelectric cooling. When direct current flows through n-type and p-type semiconductors, heat is absorbed at one junction and dissipated at the other. Essentially, it comes from energy exchange at the electron level. Electrons transfer heat energy as they flow between materials with differing electron densities. For example, in a Peltier cooler, the cold junction absorbs heat from a system (endothermic reaction). In contrast, the hot junction expels it to the surroundings. It is also reversible while changing the current direction.

Structure of a Thermoelectric Cooler: How It Works

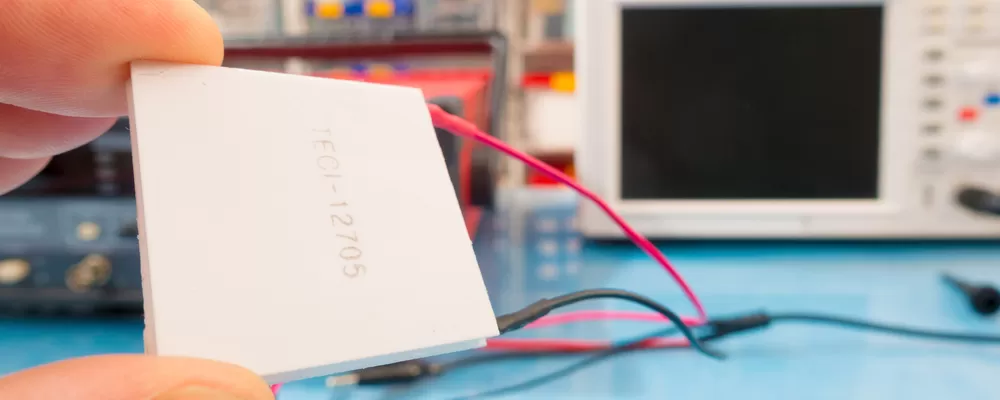

A TEC has multiple n-type and p-type semiconductor pairs between ceramic plates. They are electrically series but thermally parallel for current flow and heat transfer. When current passes through the circuit, electrons in n-type and holes in p-type transport heat from cold to hot. Heat transfer efficiency counts on the semiconductor's ZT value. Remember, it alludes to a dimensionless metric combining thermal conductivity, electrical conductivity, and the Seebeck coefficient. High-ZT materials (bismuth telluride) dominate TEC design.

Heat Absorption and Dissipation

The cold junction of a TEC absorbs heat from the system. It cools CPUs, lasers, or sensitive sensors. Yet, the heat absorbed and waste heat generated by resistive losses must be dissipated through the hot side. Without a heatsink or fan, thermal buildup affects performance. It lowers the maximum temperature differential, capped at 70°C. E.g., high-power TECs may need multi-stage configurations or heat exchangers for dissipation for stable operation under tough conditions.

So, it explains "how does thermoelectric cooling work" in novel applications.

Key Components of a Thermoelectric Cooling System

Semiconductor Materials

P-type and n-type semiconductors play a crucial role in thermoelectric cooling systems. The p-type material has electron deficiencies ("holes"). The n-type material has excess electrons. These carriers absorb thermal energy at the cold junction, move across the device, and release it at the hot junction. For instance, bismuth telluride has a high Seebeck coefficient for electrical power conversion to temperature gradients. Optimizing carrier mobility with lower lattice thermal conductivity matters for performance. So, how does thermoelectric cooling work? It precisely engineers such materials for adequate electron flow and thermal management.

Ceramic Plates

Ceramic plates are both electrical insulators and mechanical supports in thermoelectric modules. They avoid electrical short circuits and keep thermal conductivity to transfer heat. For example, Al2O3 and AlN are used due to their high dielectric strength and thermal conductivity. Moreover, their thermal expansion coefficients must match with semiconductors to avert stress during thermal cycling. It guarantees reliability under high operational loads.

Heat Sinks and TIMs

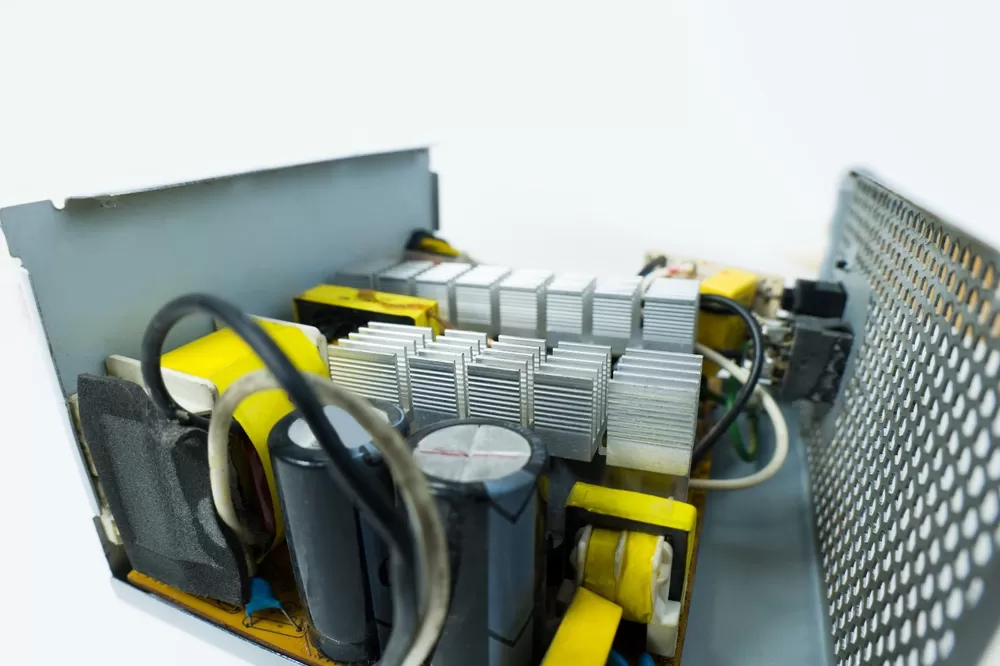

Heat sinks with thermal interface materials (TIMs) from T-Global help manage the heat rejected by the system's hot side. Heat sinks of aluminum or copper increase surface area for convective heat transfer. TIMs fill micro-gaps between the heat sink and semiconductor for less thermal resistance. For instance, graphene-enhanced thermal interface materials can attain through-plane thermal conductivities up to 100 W/m·K for greater heat dissipation. Ultimately, integrating such components prevents thermal throttling in high-power applications.

Advantages of Thermoelectric Cooling Chips

The thermoelectric cooling mechanism provides temperature control for medical equipment and portable refrigeration. Our TEC solutions at T-Global work with heat sinks and thermal interface materials to boost heat dissipation in compact systems. Thanks to their lack of moving parts, TECs are quiet and reliable, saving maintenance. Additionally, our TEC chips provide ecologically friendly cooling by removing refrigerants. Designing effective thermal management systems in current devices requires knowing "how does thermoelectric cooling work."

Applications of Thermoelectric Cooling Chips

Electronics Cooling

Thermoelectric cooling chips are key to high-precision electronics. They manage heat dissipation in CPUs and GPUs because thermal loads fluctuate rapidly. For instance, a TEC module can instantly reverse polarity to shift heat direction. It protects sensors in environments with unforgiving temperature gradients. Furthermore, TECs pair with active feedback control for sub-degree temperature precision for high-frequency operations. Comprehending "how does thermoelectric cooling work" helps optimize their integration in such systems.

Medical Devices

Medical applications demand thermal stability. TECs assure temperature uniformity in PCR machines since even minor fluctuations can invalidate results. They are also indispensable in portable vaccine coolers to keep 2-8°C during transit. Significantly, their solid-state design lowers vibrations. It safeguards optical or chemical components in lab analyzers. Systems may integrate redundancy through parallel TEC arrays for the reliable operation in partial failure.

Portable Coolers

Compact thermoelectric chips permit cooling in portable units powered by DC sources. They suit automotive refrigerators and camping gear. Unlike vapor-compression systems, TECs have no moving parts, which augments durability in rugged environments. TEC systems also have dynamic power scaling to cut energy consumption in off-grid setups. Their bidirectional cooling and heating capability lets users switch refrigeration and warming modes with a single device.

Improving Thermoelectric Cooling Efficiency

We utilize high-conductivity metal heat sinks with thermoelectric chips to dissipate heat and optimize performance. We employ thermal interface materials, including ultra-soft thermal pads, to improve heat transmission and decrease thermal resistance between components and the TEC chip. A thorough understanding of thermoelectric cooling underscores the importance of effective thermal interface management in ensuring system efficiency.
